LED Stadium Light SP01
Original price
¥0.00
-
Original price
¥0.00
Original price
¥0.00
¥0.00
-
¥0.00
Current price
¥0.00
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

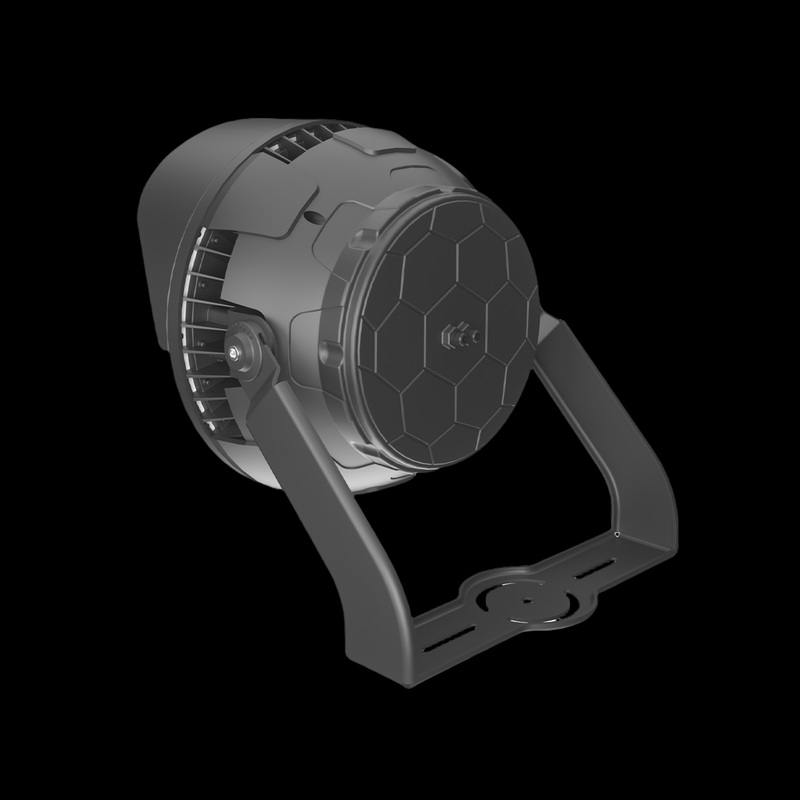

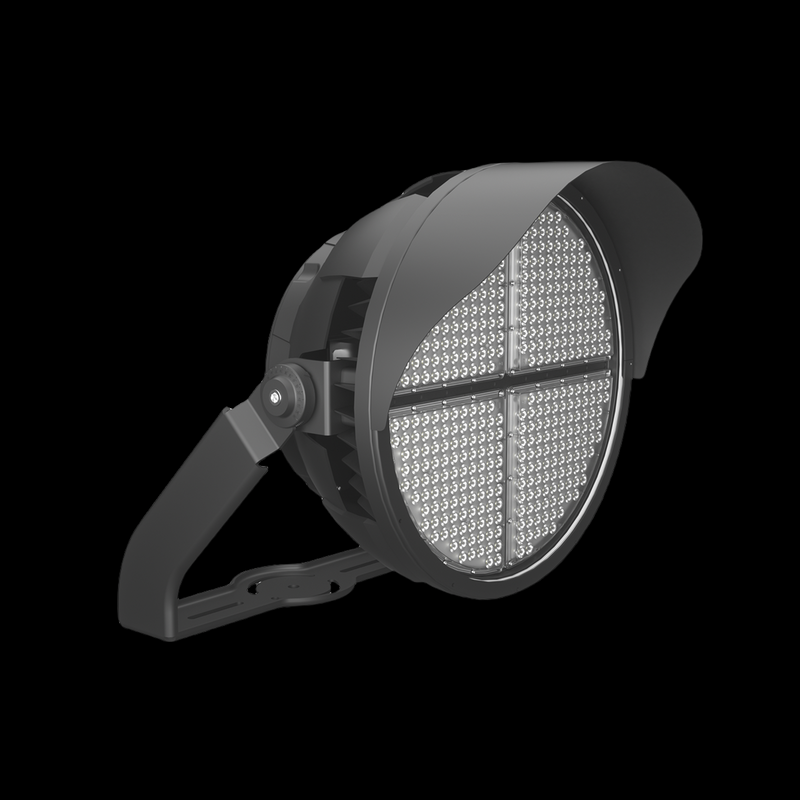

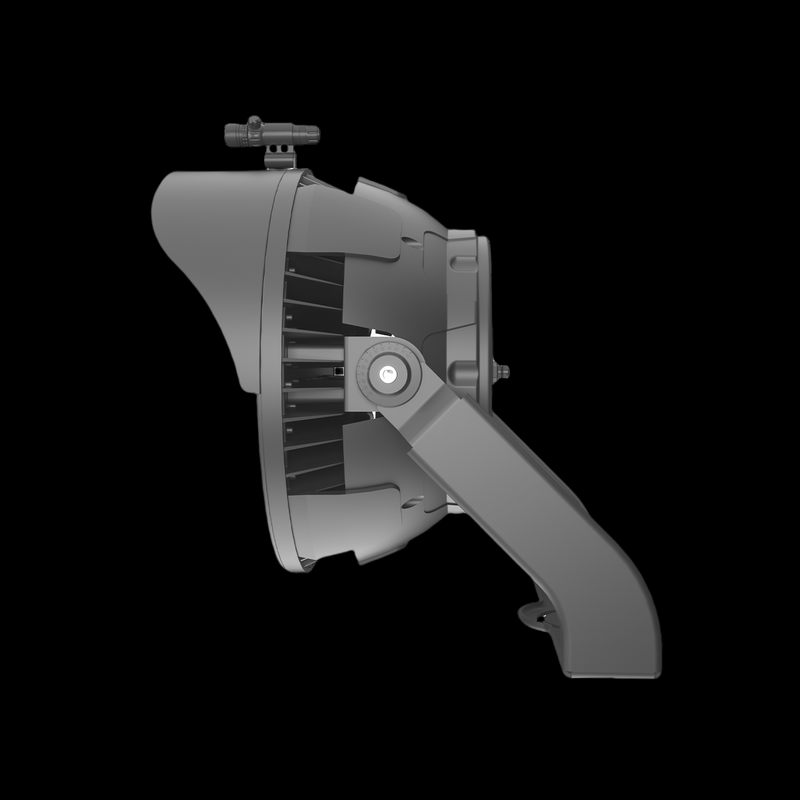

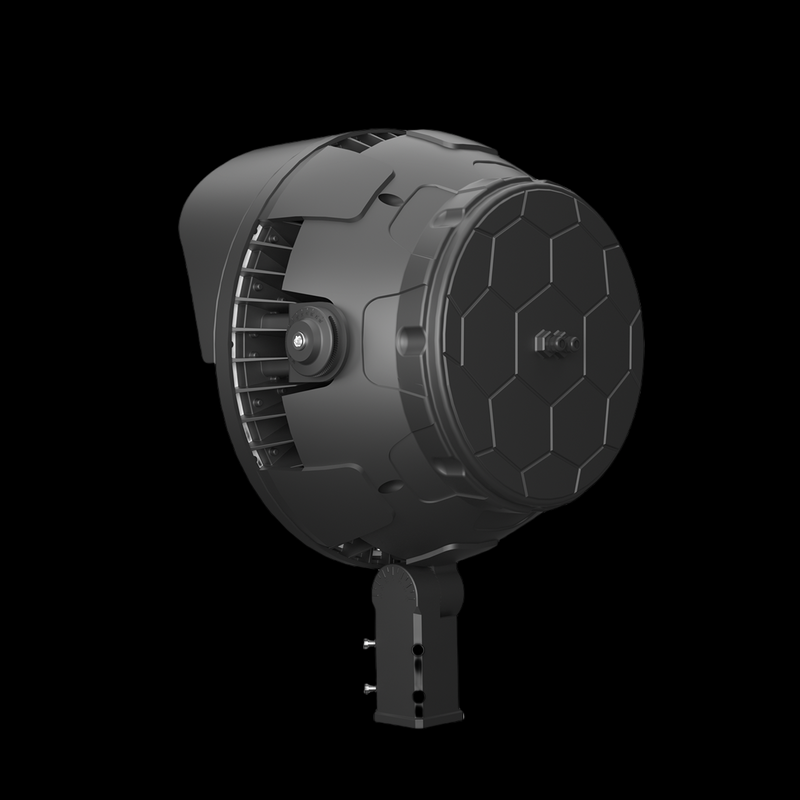

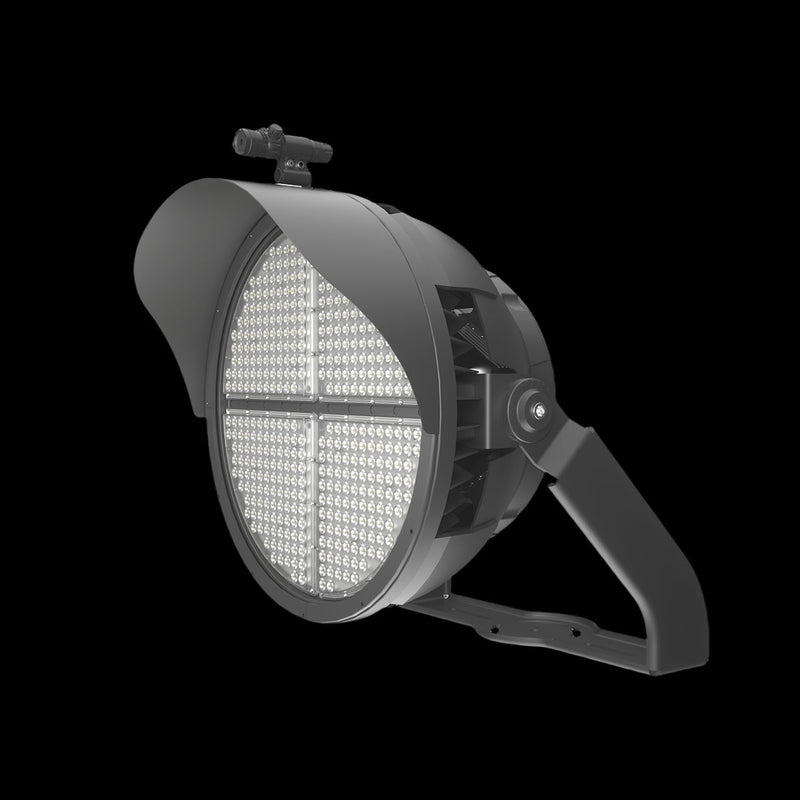

The SP01 LED Stadium Light from ZC Lighting is engineered for professional sports lighting and large-area illumination. With ultra-high efficiency, robust die-cast housing, and precision-designed optics, SP01 delivers consistent, flicker-free, and broadcast-quality lighting suitable for stadiums, arenas, ports, and industrial high-mast systems.
Key Features
| Feature | Description | |
|---|---|---|
| 💡 | High Lumen Efficiency | 150 lm/W for maximum brightness and energy savings. |
| 🔭 | Multiple Beam Angles | 15°/25°/40°/60°/80° optional for stadium, field, and long-distance lighting. |
| 🎥 | Flicker-Free | Perfect for HDTV broadcasting, slow-motion replay, and professional sports. |
| 🧩 | Modular LED Design | Easy module replacement reduces maintenance costsare . |
| 🔧 | Adjustable Mounting Bracket | Supports accurate aiming for different installation heights. |
| 🌈 | CCT Options | 3000K / 4000K / 5000K / 5700K / 6500K for various lighting environments. |
| ♻️ | Ultra Energy Saving | Replaces 1000–3000W HID floodlights at 60% lower power usage. |
| 🔒 | High-Stability Driver | Meanwell, Inventronics, and Sosen available for project requirements. |
📐Electrical & Optical
| Parameter | Specification |
|---|---|
| Power Options | 500W / 600W / 750W / 1000W |
| Luminous Efficacy | 140–150 lm/W |
| Input Voltage | AC100–277V |
| Power Factor | >0.95 |
| Beam Angles | 15°/25°/40°/60°/80° |
| CCT | 3000K / 4000K / 5000K / 5700K/ 6500K |
| CRI |
Ra 70/ 80＋ |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Housing Material | Die-cast Aluminum + PC Lens |
| Lifespan | 50,000 Hours |
| Working Temp | -30°C ~ +50°C |
| Control Options | 0–10V / DALI / Microwave Sensor |
| Certifications | CE / RoHS / ETL / DLC / SAA |
| Warranty | 5 Years |
🛡️ Protection & Reliability
| Feature | Description | |
|---|---|---|
| 🛡️ | IP66 Waterproof Rating | Designed for tough outdoor environments including storms, humidity, and dust. |
| 🌡️ | Superior Heat Dissipation | Multi-layer die-cast aluminum heat sink maintains optimal working temperature. |
| ⚡ | 10kV/20kV Surge Protection | Prevents damage from lightning and electrical surges. |
| 🧱 | IK08 Impact Resistance | Strong structural design ensures safety for high-altitude installations. |
| 🔐 | Anti-Corrosion Surface | Salt-spray–resistant coating suitable for coastal regions and ports. |
🔬 Optical Design & Performance
| Feature | Description | |
|---|---|---|
| 🔭 | Professional Lens System | High-uniformity light distribution with minimized dark spots. |
| 🌐 | Asymmetric Optics | Reduces spill light for stadium sidelines & surrounding areas. |
| 🌙 | Low Glare Design | Suitable for spectator visibility & athlete comfort. |
| 🎥 | Flicker-Free Output | Ensures crystal-clear image quality for broadcast cameras. |
| 🏅 | Sports-Grade Illumination | Meets FIFA & FIBA illumination requirements (on request). |
🏭 Application Scenarios
| Area | Description | |
|---|---|---|
| 🏟️ | Outdoor Stadiums | Soccer, baseball, rugby, athletics, and professional sports fields. |
| 🏀 | Indoor Arenas | Sports halls, gymnasiums, and training centers. |
| 🚢 | Ports & Terminals | High-mast lighting for cranes, container yards, and docks. |
| 🏭 | Industrial Zones | Large outdoor production, security, mining, and logistics areas. |
| 🅿️ | Large Parking Lots | High-pole lighting for safety and visibility. |
