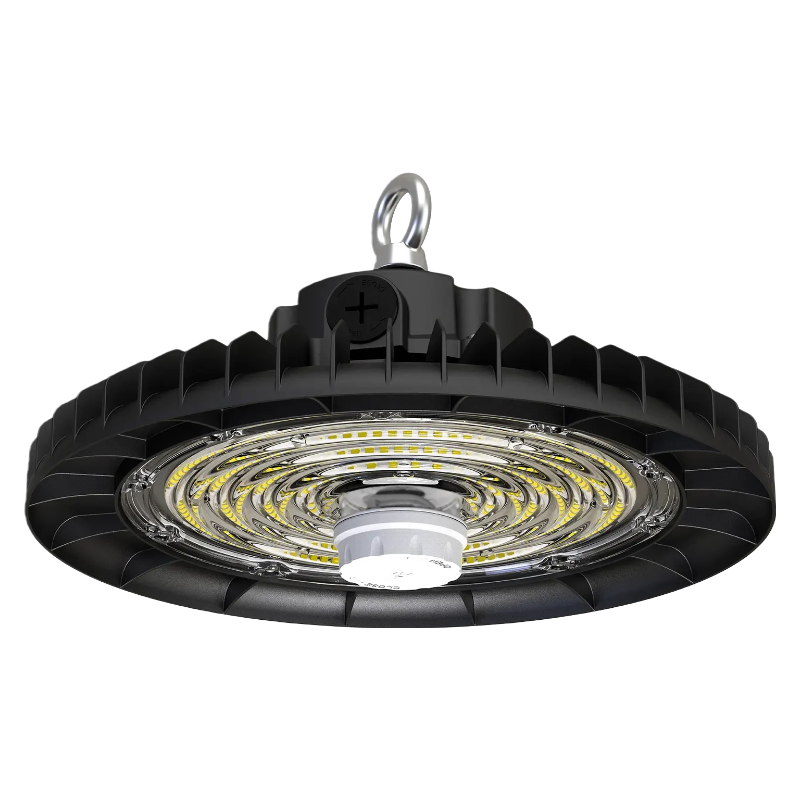

The ZC Lighting HB13 Series LED UFO Industrial Lamp is a top-of-the-line lighting solution designed for harsh industrial and commercial environments. It combines advanced LED technology with superior structural design to provide ultra-high brightness and uniform light distribution for warehouses, factories, stadiums, and retail spaces.
Key Features
| Feature | Description |
|---|---|
| 💡 Ultra-High Efficiency | Up to 200lm/W, maximizing energy savings and brightness. |

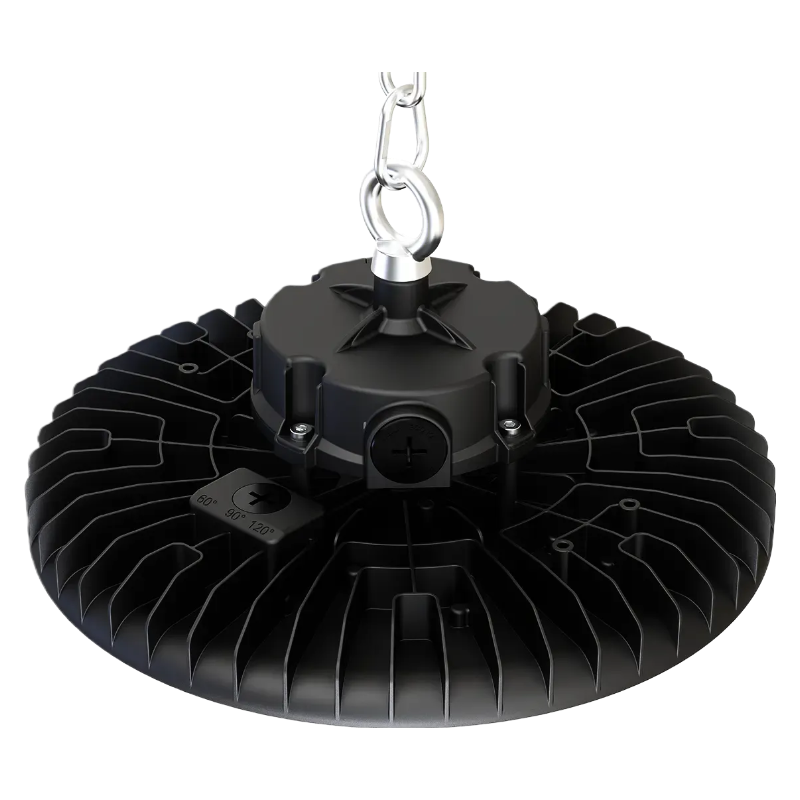

| 🧊 Superior Thermal Management | An advanced aluminum heat sink ensures long-lasting performance. |
| 🎯 Customizable Optics | Beam angles: 60°, 90°, 120° for optimal light distribution. |
| 🌧️ IP65 Waterproof & Dustproof | Suitable for demanding industrial and humid conditions. |
| ⚡ 10KV Surge Protection | Prevents damage from voltage fluctuations or lightning. |
| 🔌 Smart Lighting Compatibility | Supports 0–10V, DALI, and Microwave Sensor control. |
| 🕒 Extended Lifespan | Over 50,000 hours with minimal maintenance. |

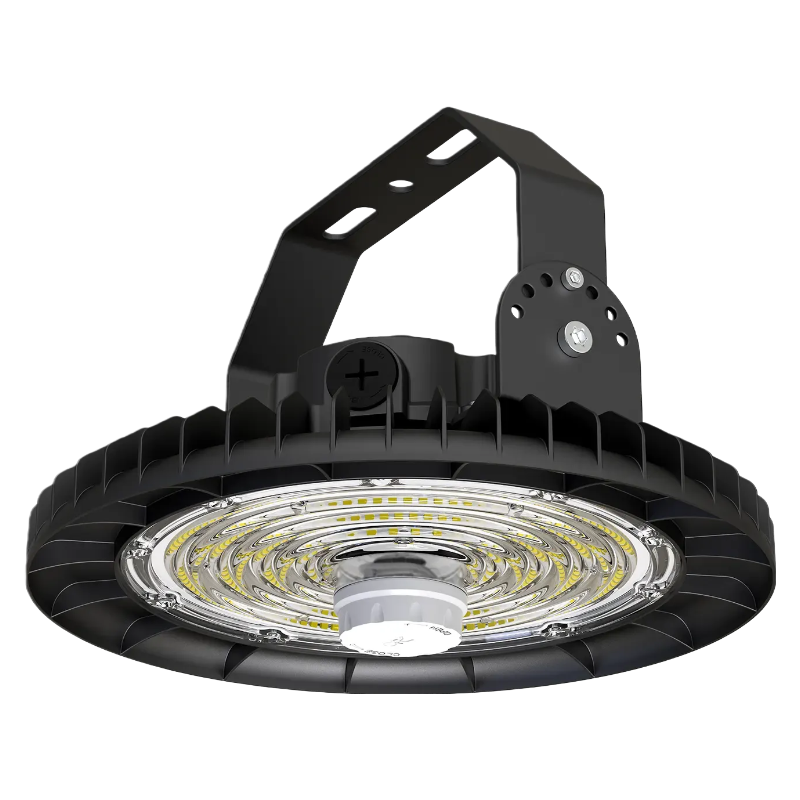

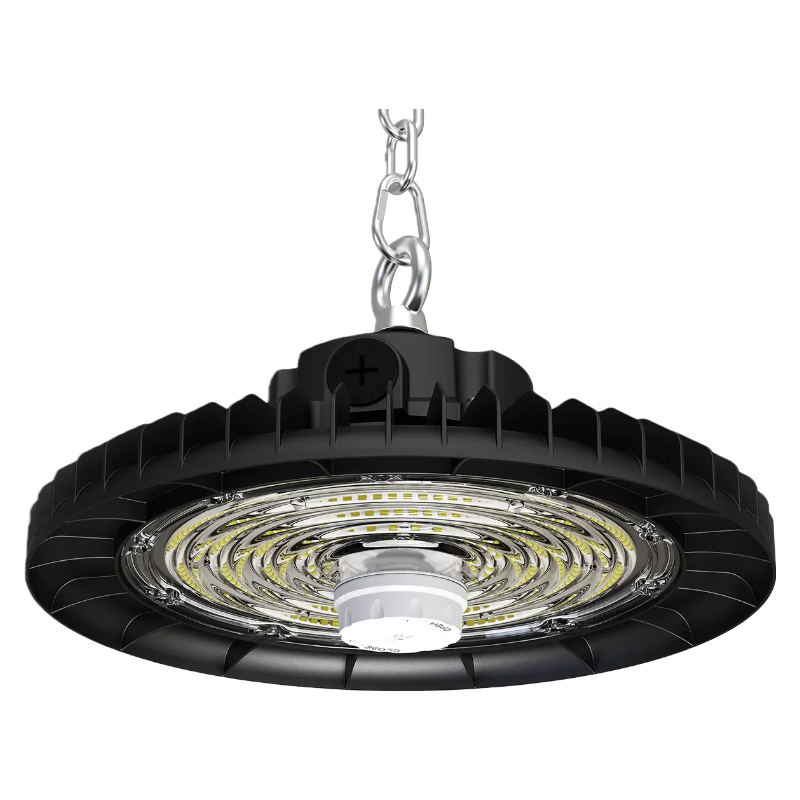

| 🛠️ Flexible Installation | Easy hook, chain, or bracket mounting options. |
📐 Product Specifications
| Parameter | Specification |
|---|---|
| Power Range | 100W / 150W / 200W / 240W |
| Luminous Efficacy | 140–200 lm/W |
| Input Voltage | AC100–277V / 220–240V |
| Luminous Flux | 48,000Lm |
| Beam Angle | 60° / 90° / 120° |
| CCT | 3000K / 4000K / 5000K / 5700K/ 6500K |
| CRI | Ra 70/80＋ |
| IP Rating | IP65 |
| IK Rating | IK10 |
| Housing Material | Die-cast Aluminum + PC Lens |
| Lifespan | 50,000 Hours |
| Mounting Options | Hook / Bracket / Chain |
| Control Options | 0–10V / DALI / Microwave Sensor |
| Certifications | CE / RoHS / ETL / DLC / SAA |
| Warranty | 5 Years |
🛡️ H2: Protection & Reliability
| Protection Features | |
|---|---|
| 🛡️ | IP65 Waterproof & Dustproof — Suitable for harsh industrial environments |
| ⚡ | Surge Protection 4kV/6kV (Driver dependent) |
| 🌡️ | Wide Temperature Range：-35°C ~ +50°C |
| 🔥 | Die-cast Aluminum Heat Sink for long lifespan |
| 🧪 | 50,000+ Hours Lifespan (L70) |
| 🧯 | Fire-resistant housing & industrial-grade wiring |
🔬 Optical Design & Performance
| Optical Feature | Description | |
|---|---|---|
| 🔍 | Professional Light Distribution | Uniform output, no dark zones |
| 🎯 | High-Precision Lenses | PMMA lens enhances lux coverage |
| 🌓 | UGR-Controlled Design | Soft, glare-free lighting |
| 📐 | Wide Beam Options | Ideal for 6–20m ceiling height |
| 📊 | Photometric IES Available | Supports lighting simulations (Dialux/AGi32) |
Certifications
| Scenario | |
|---|---|
| 🏭 | Factories & Workshops |
| 📦 | Warehouses & Fulfillment Centers |
| 🚚 | Logistics Centers |
| 🛒 | Supermarkets & Retail |
| 🏟️ | Gyms, Exhibition Halls, Sports Venues |
| 🏬 | Commercial High-Ceiling Areas |
🏗️ Applications
| Scenario | |
|---|---|
| 🏭 | Factories & Workshops |
| 📦 | Warehouses & Fulfillment Centers |
| 🚚 | Logistics Centers |
| 🛒 | Supermarkets & Retail |
| 🏟️ | Gyms, Exhibition Halls, Sports Venues |
| 🏬 | Commercial High-Ceiling Areas |
