LED UFO High Bay Light HB16
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

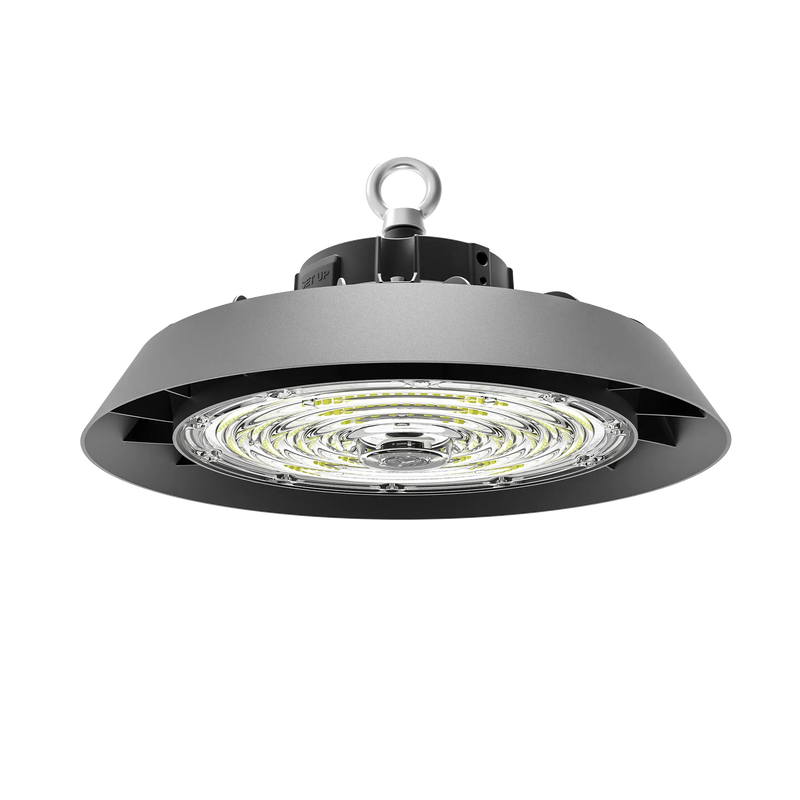

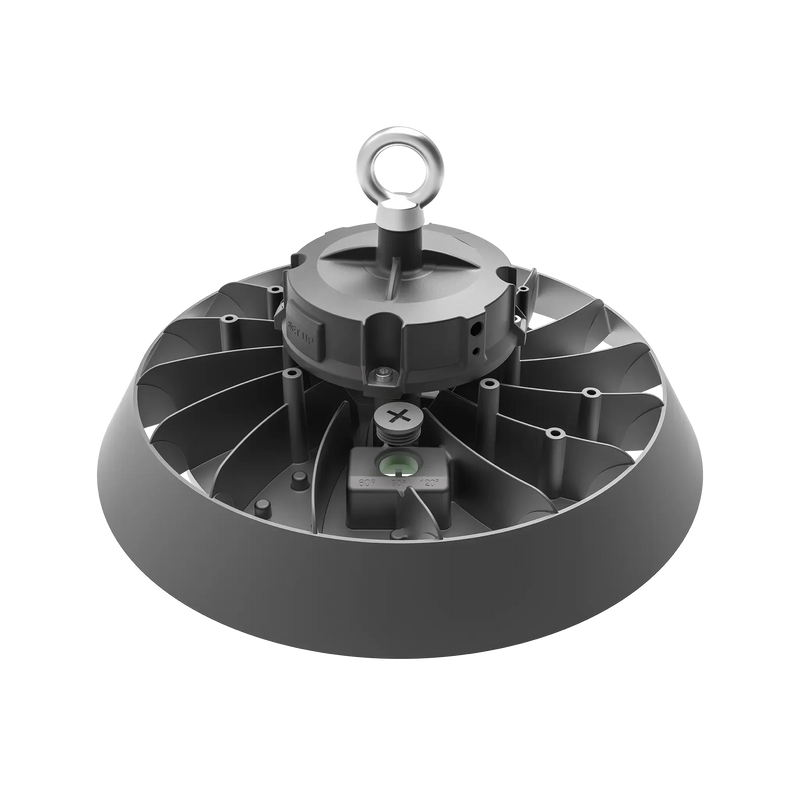

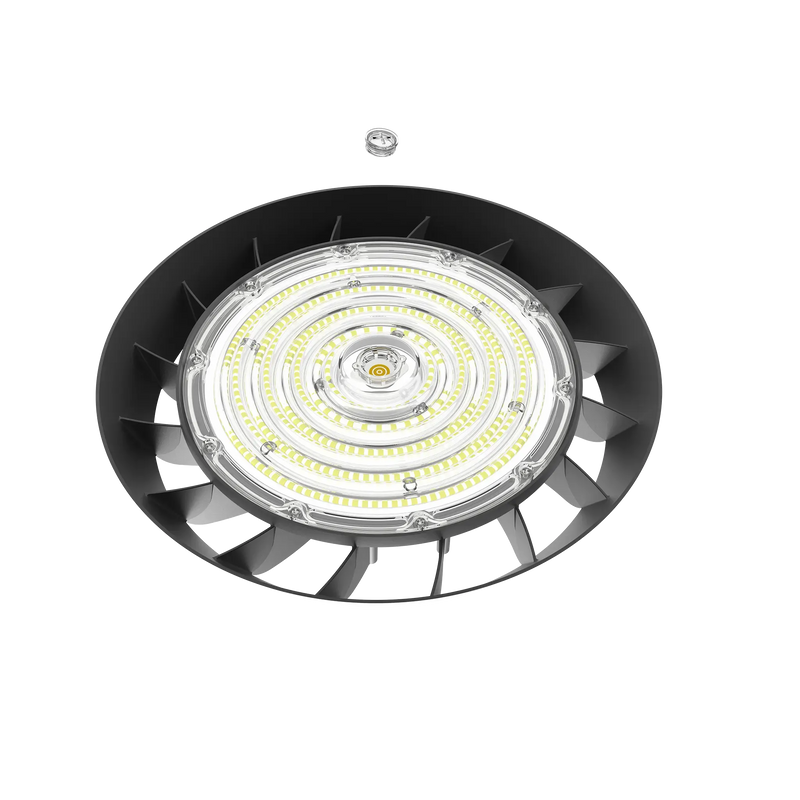

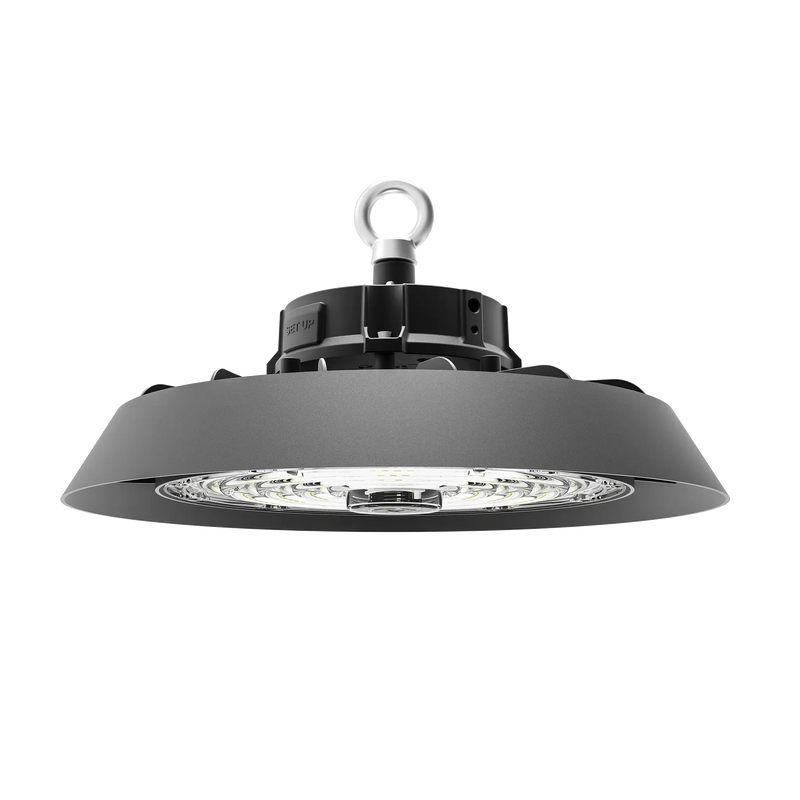

The ZC Lighting HB16 LED UFO High Bay Light is designed for high-ceiling industrial and commercial environments such as warehouses, workshops, and logistics centers.
With up to 170lm/W luminous efficiency, IP65 waterproof protection, and a die-cast aluminum housing, it offers durable, uniform, and energy-efficient lighting for all industrial spaces.
Key Features
| Feature | Description |
|---|---|
| 💡 Ultra High Efficiency (Up to 170lm/W) | Delivers bright, uniform light while reducing power consumption. |
| 🧱 Robust Die-cast Aluminum Body | Enhances thermal performance and product lifespan. |
| 🌈 Multiple Beam Angles (60° / 90° / 120°) | Adapts to diverse lighting requirements for different spaces. |
| ⚙️ Smart Control Options | Supports 0–10V Dimming / DALI / Motion Sensor systems. |
| 🔋 Energy Saving & Eco-friendly | Reduces electricity costs by up to 70%. |
| 🌡️ Wide Operating Temperature (-30°C ~ +45°C) | Works reliably in both cold storage and high-temperature workshops. |
| ⏱️ Long Lifespan >50,000 Hours | Ensures continuous operation with minimal maintenance. |
| 🪛 Easy Installation | Compatible with hook, chain, and bracket mounting methods. |
📐 Product Specifications
| Parameter | HB16-100W | HB16-150W | HB16-200W |
| Power (W) | 100W | 150W | 200W |
| Input Voltage | AC100-277V/200-240V | ||
| Luminous Efficacy | 160-170 Lm/W | 160-170 Lm/W | 160-170 Lm/W |
| Luminous Flux | 16,000 Lm-17,000lm | 24,000 Lm-25,500lm | 32,000 Lm-34,000lm |
| Beam Angle | 60° / 90° / 120° | ||
| CCT | 3000K / 4000K / 5000K / 5700K / 6500K | ||
| CRI | Ra70/Ra80 | ||
| SDCM | 6 | ||
| Power Factor | ≥0.90 | ||
| THD | <15% | ||
| Percent Flicker | <1% | ||
⚙️Machinery & Materials
| Parameter | HB-100W | HB-150W | HB-200W |
| Structure Material | ADC12 die-cast aluminum | ||
| Surface Finish | Powder coated (Gray) | ||
| Lens | PC Lens + Tempered Glass | ||
| Bracket | Die-cast U-bracket with reinforcement ribs | ||
| Aiming | Aiming 360° rotation; 5° scale | ||
🔒Protection & Reliability
| Protection Type | Description | |
|---|---|---|
| 🌧️ | IP65 Waterproof Design | Protects against dust and water ingress for long-term operation. |
| ⚡ | 6KV/10KV Surge Protection | Shields circuits from voltage spikes and lightning. |
| 🌡️ | Excellent Heat Dissipation | Integrated heat sink design ensures stable temperature control. |
| 🔌 | Stable LED Driver | Delivers consistent illumination without flickering. |
| 🧊 | Anti-corrosion Coating | Suitable for humid or coastal industrial zones. |
🔬 Optical Design & Performance
The HB16 High Bay Light features precision-engineered lenses for superior light distribution and minimal glare.
| Feature | Description | |
|---|---|---|
| 🔍 | Uniform Beam Distribution | Ensures balanced light coverage across large spaces. |
| 💡 | High CRI (>80) | Provides natural and clear visibility for industrial tasks. |
| 🔆 | Flicker-Free Driver | Ideal for camera surveillance areas and precision work. |
📈 High uniformity lighting for better visual comfort and workplace safety.
🏭 Application Scenarios
| Scenario | |
|---|---|
| 🏗️ | Industrial Workshops & Production Plants |
| 🚛 | Logistics Centers & Warehouses |
| 🏢 | Commercial Exhibition Halls |
| 🏬 | Supermarkets & Retail Stores |
| ❄️ | Cold Storage Facilities |
| 🛠️ | Factory Assembly Lines |
💡 Perfect illumination for productivity, safety, and energy efficiency.
