LED UFO High Bay Light HB17
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

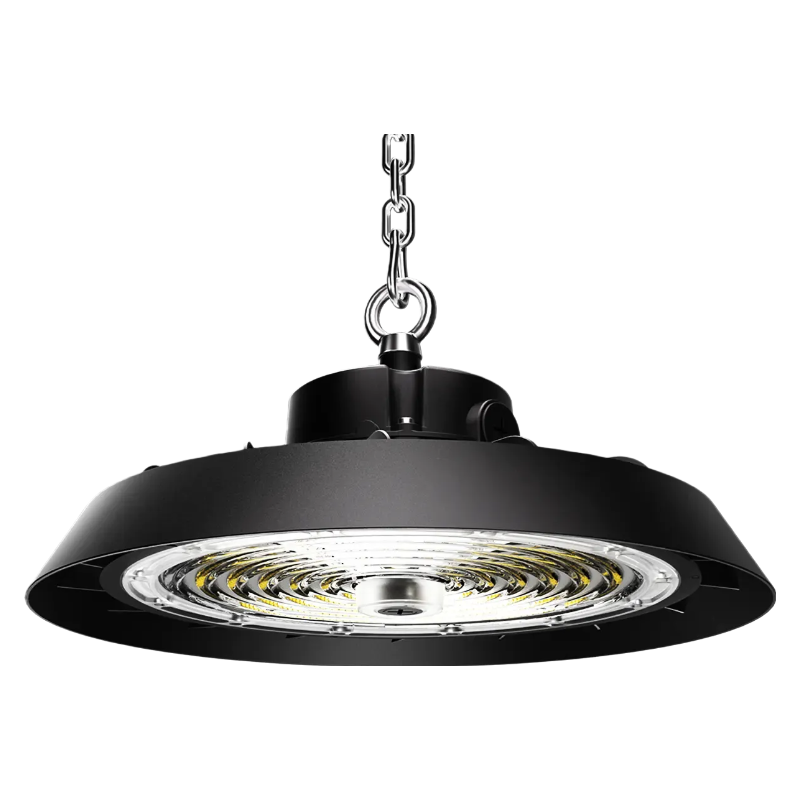

The ZC Lighting HB17 LED UFO High Bay Light is an energy-efficient, durable, and high-performance lighting solution tailored for industrial environments.
Featuring up to 200lm/W high lumen output, IP65 waterproof design, and premium heat dissipation, the HB17 delivers long-lasting reliability and brilliant illumination for large facilities.
Designed for performance and longevity — the HB17 combines industrial strength with smart control capabilities for modern warehouses and factories.
Key Features & Benefits
| Feature | Description |
|---|---|
| 💡 High Efficiency | Delivers up to 200lm/W, reducing energy use by over 70%. |

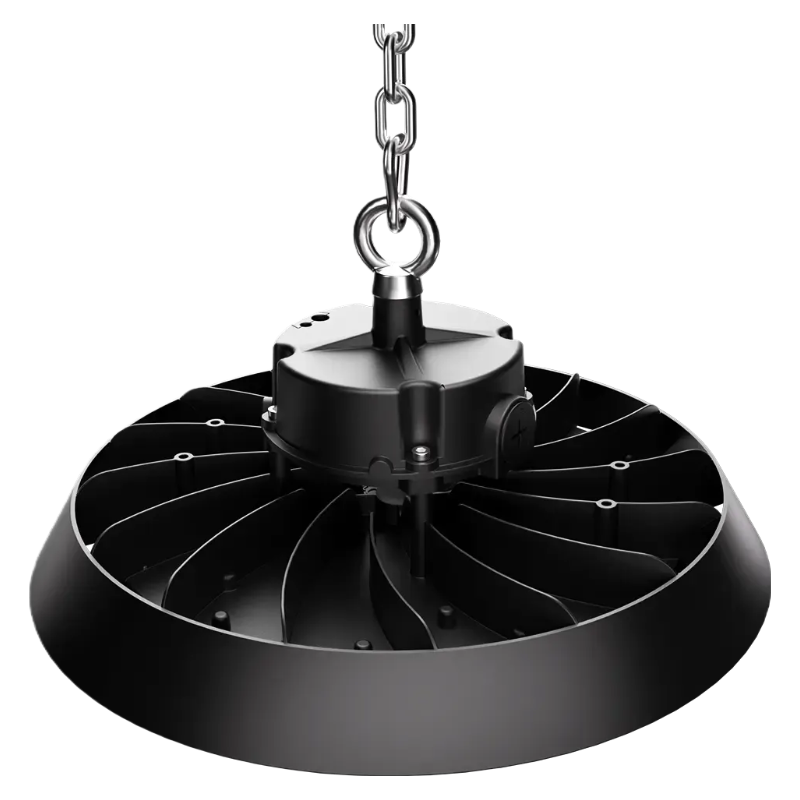

| 🧊 Excellent Heat Dissipation | Die-cast aluminum housing ensures stable thermal performance. |
| 🌧️ IP65 Waterproof Design | Works reliably in dusty or humid environments. |
| ⚡ 10KV Surge Protection | Prevents damage from voltage spikes. |
| 🕒 Long Lifespan | Up to 50,000 hours of maintenance-free operation. |
| 🧠 Smart Control Options | Compatible with 0–10V / DALI / Microwave sensor. |

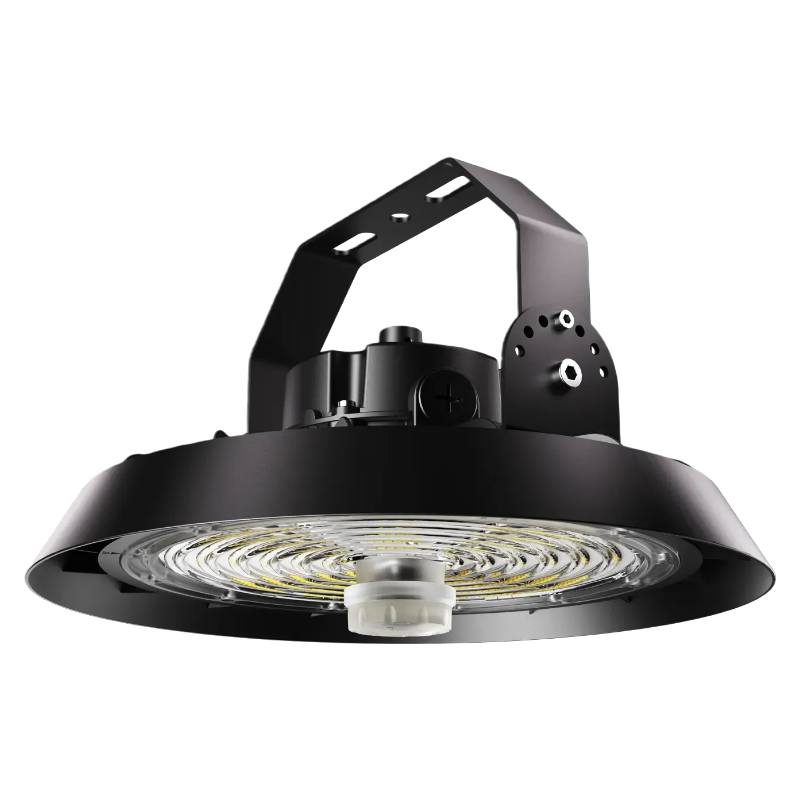

| 🛠️ Flexible Mounting | Supports hook, chain, and bracket installation. |
| 🔋 Energy Efficient | Ideal replacement for 400–1000W metal halide lamps. |
📐Electrical & Optical
| Parameter | Specification |
|---|---|
| Power Range | 100W / 150W/ 200W/ 240W |
| Luminous Efficacy | 140-200Lm/W |
| Luminous Flux | 14,000Lm – 20,000Lm/21,000Lm – 30,000Lm/28,000Lm – 40,000Lm/33,600Lm – 45,600Lm |
| Input Voltage | AC100-277V/AC220-240V |
| Power Factor | >0.95 |
| Beam Angles | 60°, 90°, 120° (3-in-1 Lens) |
| CCT | 3000K / 4000K / 5000K / 5700K / 6500K |
| CRI | 70, 80 |
| SDCM | 6 |
| THD | <15% (@480Vac/60Hz, 25℃, full load) |
| Percent Flicker | <1% |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Housing Material | Die-cast Aluminum + PC Lens |
| Lifespan | 50,000 Hours |
| Operating Temp | -30°C ~ +45°C (-86°F ~ +113°F) |
| Mounting | Hook / Chain / Bracket |
| Control Options | 0–10V / DALI / Microwave Sensor |
| Certifications | CE / RoHS / ETL / DLC / SAA |
| Warranty | 5 Years |
🔒Protection & Reliability
| Feature | Description | |
|---|---|---|
| 🌧️ | IP65 Waterproof | Withstands dust, humidity, and outdoor conditions. |
| ⚡ | 10KV Surge Protection | Safeguards electronics from sudden voltage surges. |
| 💥 | IK08 /IK10 Impact Resistance | Built with durable housing for industrial safety. |
| 🌡️ | Superior Heat Dissipation | Maintains low junction temperature for longer LED life. |
| 🕒 | Long Lifespan Design | Up to 50,000 hours of consistent performance. |
💬 Reliable lighting even in the harshest environments – from manufacturing lines to warehouse ceilings.
🧠 Optical & Lighting Performance
The HB17 series integrates precision-engineered optical lenses that deliver:
-
Uniform, glare-free light distribution
-
High luminous uniformity with no dark zones
-
Beam options optimized for high ceilings
-
Compatibility with motion and daylight sensors
⚙️ Engineered for maximum performance and visual comfort.
🏭 Applications
ZC Lighting HB17 LED UFO High Bay Light is ideal for a wide range of professional applications:
-
🏢 Warehouses & Distribution Centers
-
🏭 Manufacturing Workshops
-
🚗 Automotive Service Garages
-
🧊 Cold Storage Facilities
-
🛒 Supermarkets & Retail Areas
-
🏋️ Gymnasiums & Sports Halls
-
🚧 Construction & Logistic Bases
💡 Perfect for areas requiring uniform, bright, and cost-effective illumination.
