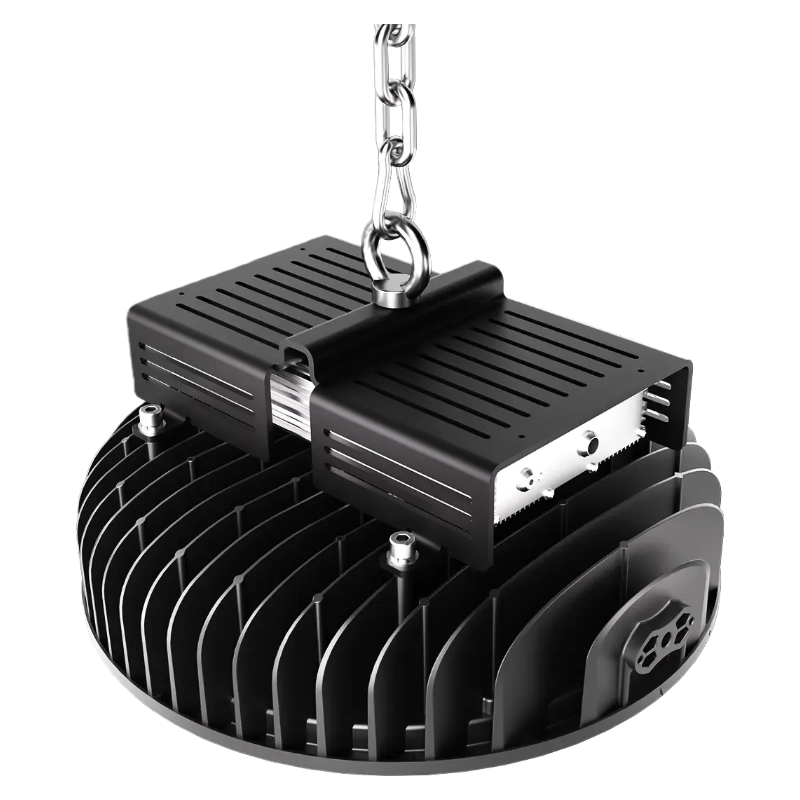

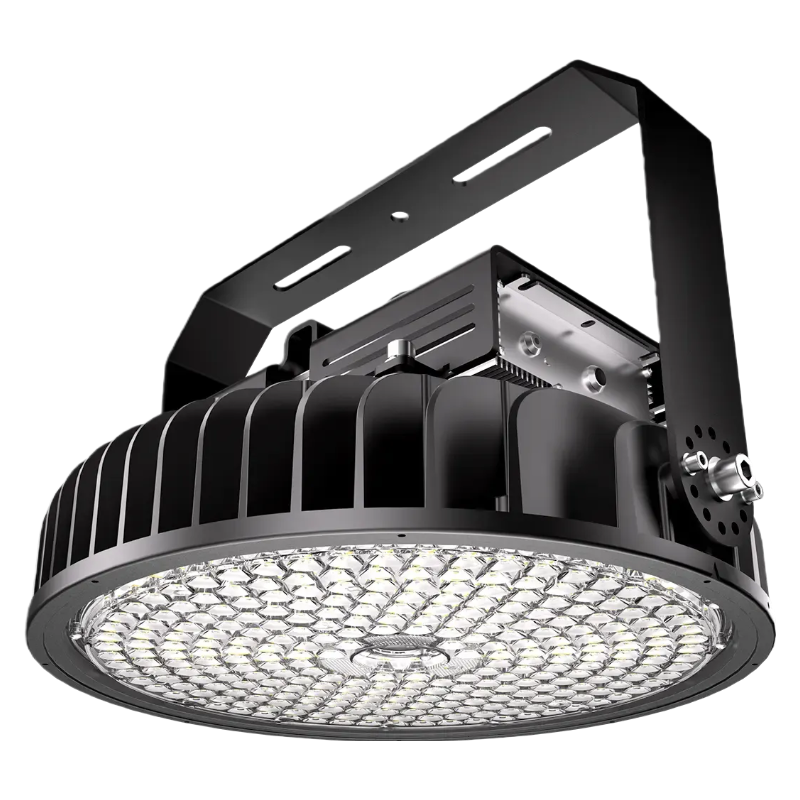

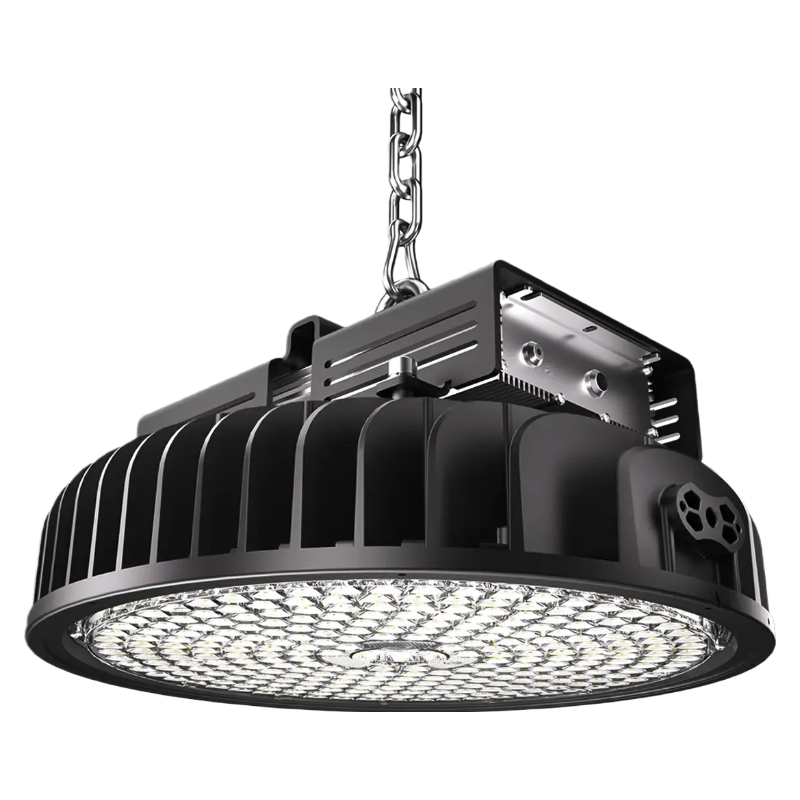

LED UFO High Bay Light HB20
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The ZC Lighting HB20 LED UFO High Bay Light is a new-generation industrial luminaire that combines extreme efficiency, durability, and smart control technology.
Built for high-ceiling environments, HB20 delivers up to 175lm/W luminous efficacy, superior heat dissipation, and a long lifespan of 50,000 hours, making it the perfect lighting solution for warehouses, workshops, and large indoor facilities.
High brightness, low maintenance — HB20 sets a new standard for industrial LED high bays.
Key Features
| Feature | Description |
|---|---|
| 💡 Ultra-High Luminous Efficiency | Up to 175lm/W, providing superior brightness with minimal energy use. |
| 🧊 Advanced Heat Dissipation | Integrated aluminum heat sink ensures stable performance in all environments. |
| 🌧️ IP65 Waterproof & Dustproof | Ideal for humid, dusty, and high-temperature environments. |
| ⚡ 10KV Surge Protection | Safeguards against voltage spikes and power fluctuations. |
| 🔌 Smart Lighting Control | Supports DALI / 0–10V dimming / Microwave sensor systems. |
| 🕒 Long Service Life | Over 50,000 hours with minimal lumen depreciation. |
| 🛠️ Easy Installation | Multiple mounting options: hook, chain, or bracket. |
| 🔋 Energy Saving | Replaces 400–800W metal halide lamps with 70% less energy consumption. |
📐Electrical & Optical
| Parameter | Specification |
|---|---|
| Power Range | 300W / 400W |
| Luminous Efficacy | 175 lm/W |
| Luminous Flux | 52,500 Lm / 70,000 Lm |
| Input Voltage | AC90-305V/100-277V |
| Power Factor | >0.95 |
| Beam Angles | 12 °,25 °, 40 °,60 ° |
| CCT | 3000K / 4000K / 5000K / 5700K / 6500K |
| CRI | 70, 80, 90, TLCI90 optional |
| SDCM | 6 |
| THD | <15% (@480Vac/60Hz, 25℃, full load) |
| Percent Flicker | <1% |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Housing Material | Die-cast Aluminum + PC Lens |
| Lifespan | 50,000 Hours |
| Operating Temp | -40°C ~ +50°C |
| Mounting | Hook / Chain / Bracket |
| Control Options | 0–10V / DALI / Microwave Sensor |
| Certifications | CE / RoHS / ETL / DLC / SAA |
| Warranty | 5 Years |
🔒Protection & Reliability
| Feature | Description | |
|---|---|---|
| 🌧️ | IP65 Waterproof | Ensures reliability in humid and dusty industrial spaces. |
| ⚡ | 10KV Surge Protection | Guards the fixture from sudden power surges. |
| 💥 | IK08/IK10 Impact Resistant | Robust structure resists mechanical impact. |
| 🌡️ | Superior Heat Control | Maintains performance under continuous high-load operation. |
| 🕒 | 50,000-Hour Lifespan | Long service life reduces replacement and maintenance costs. |
🧠 Built for heavy-duty applications and continuous 24/7 operations.
🏭 Application Scenarios
ZC Lighting HB20 LED UFO High Bay Light is ideal for:
-
🏢 Warehouses & Logistics Centers
-
🏭 Factories & Workshops
-
🧊 Cold Storage Facilities
-
🛒 Supermarkets & Shopping Malls
-
🚗 Auto Repair Shops & Parking Areas
-
🏋️ Indoor Sports Halls & Exhibition Centers
-
🚚 Industrial Hubs & Assembly Lines
🎯 Delivers uniform illumination and reduces glare, improving visibility and worker comfort.
