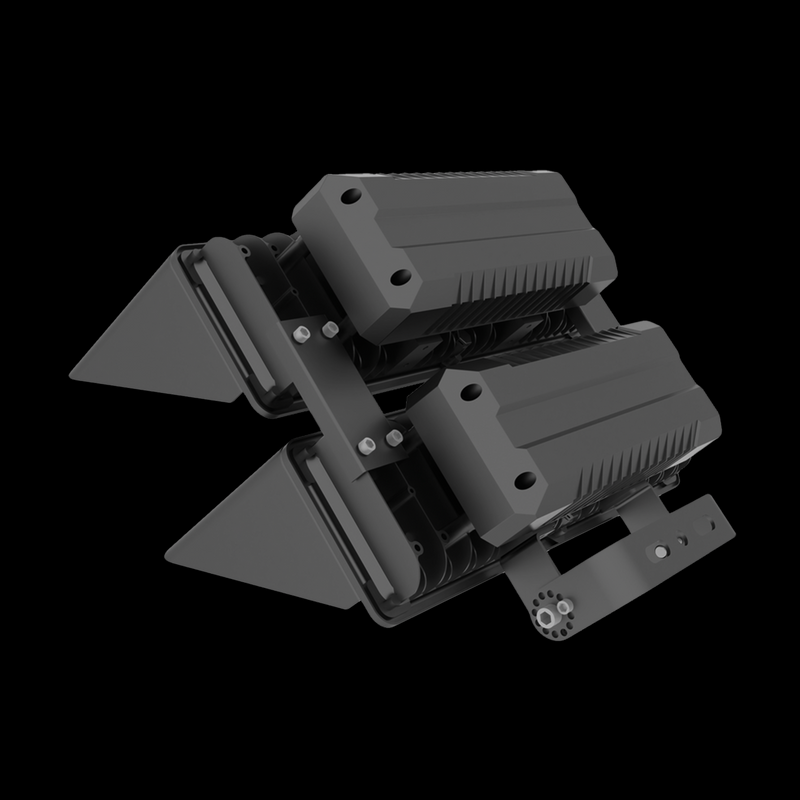

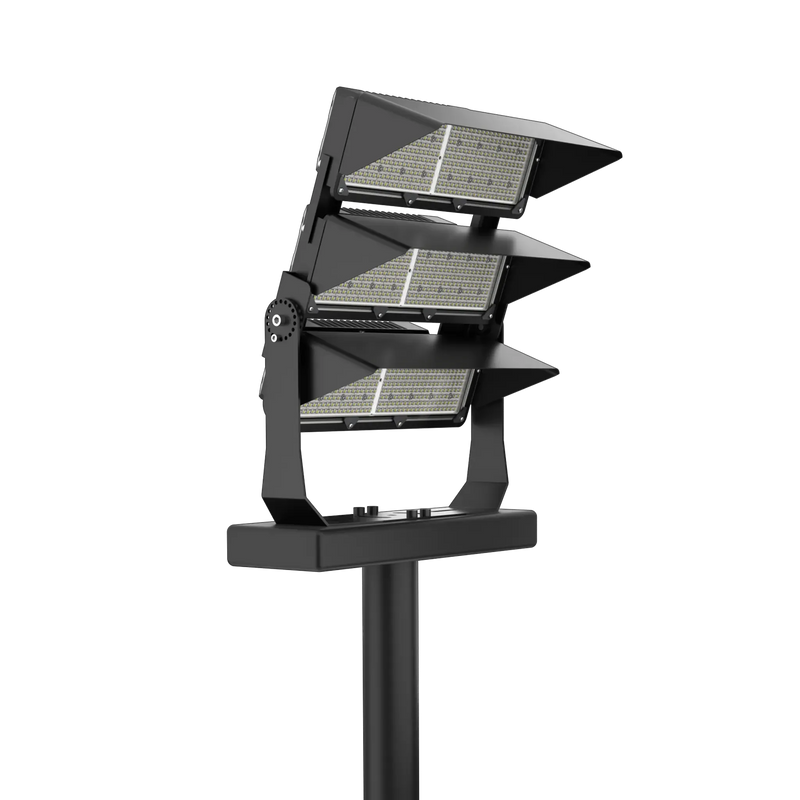

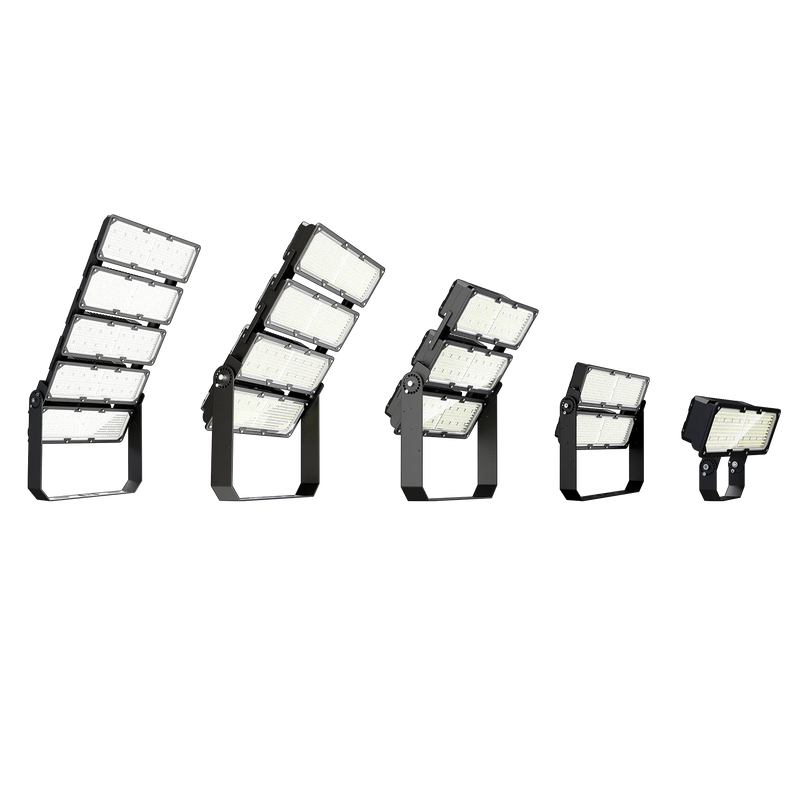

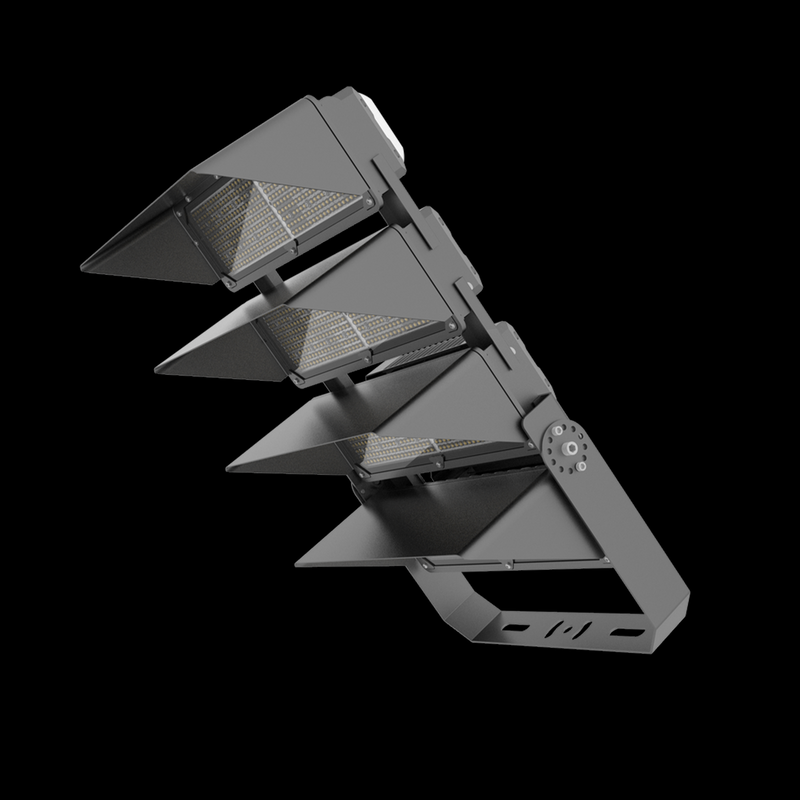

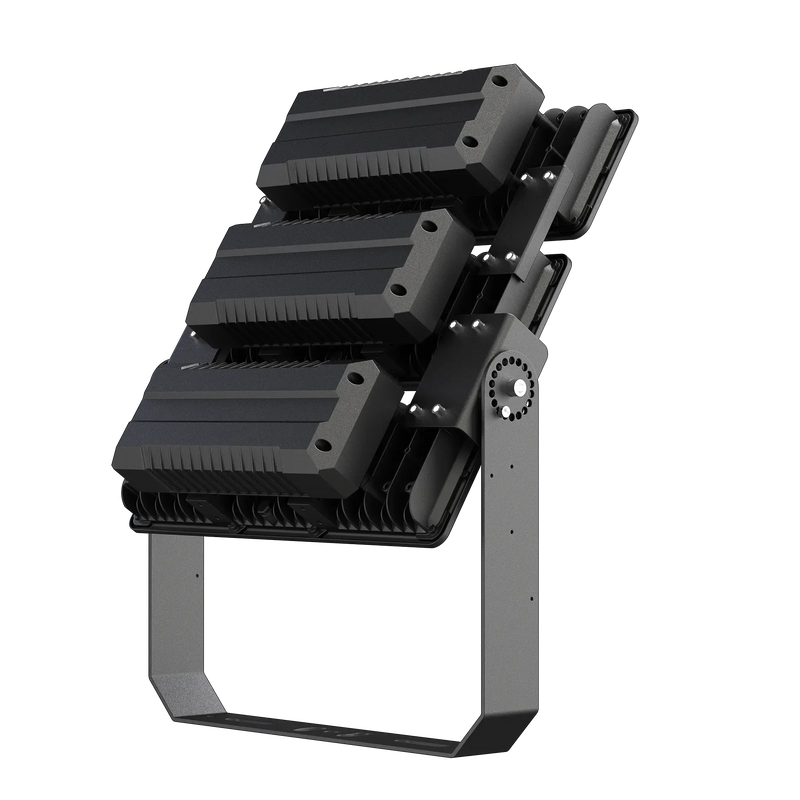

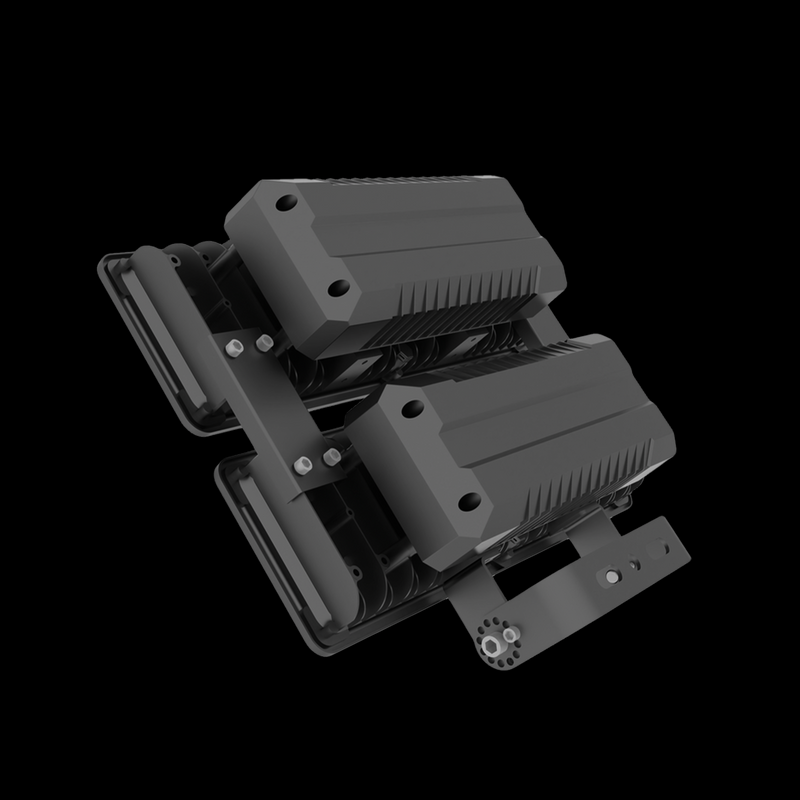

LED Stadium Light FL08A
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The ZC Lighting FL08A LED Stadium Light is a high-performance floodlight engineered for sports arenas, airports, ports, and outdoor industrial zones.
Its modular configuration, precision optics, and die-cast aluminum housing ensure top-tier performance and durability.
With high luminous efficiency up to 170 lm/W, and various beam angles (25° /45° /60° /90° /80° *152° /80° *145° / 120° *148° /45° *105°), FL08A offers both powerful brightness and precise light control — reducing light spill and improving visibility across large areas.
Key Features
| Feature | Description |
|---|---|
| 💡 Ultra High Efficiency up to 170lm/W | Delivers superior brightness with reduced power consumption. |
| 🎯 Professional Optical Lenses | 25° /45° /60° /90° /80° *152° /80° *145° / 120° *148° /45° *105° beam angles for perfect light control. |
| 🌧️ IP66 Waterproof & IK10 Impact Resistant | Designed for outdoor stadium and sports field environments. |
| 🌡️ Excellent Heat Dissipation | Unique fin design ensures consistent thermal performance. |
| ⚡ Surge Protection 10KV/20KV | Safeguards against power spikes and lightning surges. |
| 🧠 Smart Control Options | Supports DALI / 0–10V dimming / DMX control for precise lighting effects. |
| 🔋 Long Lifespan >50,000 Hours | Reliable performance for long-term operation. |
| 🛠️ Modular Design | Easy maintenance and flexible wattage combinations. |
📐Electrical & Optical
| Parameter | Specification |
|---|---|
| Power | 200W / 250W / 400W / 500W / 600W / 750W / 800W/ 1000W |
| Luminous Efficiency | 160–170 lm/W |
| Input Voltage | AC100–277V / 277-480V |
| Power Factor | ≥0.95 |
| Beam Angles | 25° /45° /60° /90° /80° *152° /80° *145° / 120° *148° /45° *105° |
| CCT | 3000K / 4000K / 5000K / 5700K/ 6500K |
| CRI | Ra ≥ 80 |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Housing Material | Die-cast Aluminum + Tempered Glass |
| Operating Temp | -30°C ~ +50°C |
| Control Options | DALI / DMX512 / 0–10V Dimming |
| Surge Protection | 10KV / 20KV |
| Certifications | CE / RoHS / ENEC / ETL / DLC |
| Warranty | 5 Years |
| Lifespan | 50,000 Hours |
🔒Protection & Reliability
| Feature | Description | |
|---|---|---|
| 🌧️ | IP66 Waterproof | Perfect for outdoor environments exposed to rain and dust. |
| ⚡ | 10KV/20KV Surge Protection | Ensures electrical safety and system stability. |
| 💥 | IK10 Impact Resistant | Resists mechanical shock and sports ball impacts. |
| 🌡️ | Thermal Control System | Prevents overheating and maintains LED efficiency. |
| 🔋 | 50,000H Lifespan | Long-term durability for sports venues and arenas. |
🔑Product Comparison and Competitive Advantages
| Feature | FL08A | Traditional Metal Halide | Generic Flood Light |
|---|---|---|---|
| Efficiency | ★★★★★ | ★★☆☆☆ | ★★★☆☆ |
| Lifespan | 50,000h | <15,000h | 30,000h |
| Heat Dissipation | Excellent | Poor | Moderate |
| Maintenance | Low | High | Medium |
| Glare Control | Precise optics | Poor | Average |
| Weather Resistance | IP66 | IP54 | IP65 |
🏟️ Application Scenarios
ZC Lighting FL08A LED Stadium Lights are ideal for:
-
🏟️ Football / Soccer Stadiums
-
🏀 Basketball & Tennis Courts
-
🏁 Race Tracks & Outdoor Arenas
-
🏐 Multi-purpose Sports Fields
-
⛳ Golf Driving Ranges
-
🚧 High Mast Floodlighting Projects
-
⚓ Ports & Outdoor Industrial Yards
💡 From sports lighting to industrial high mast illumination, FL08A is your all-in-one solution.
